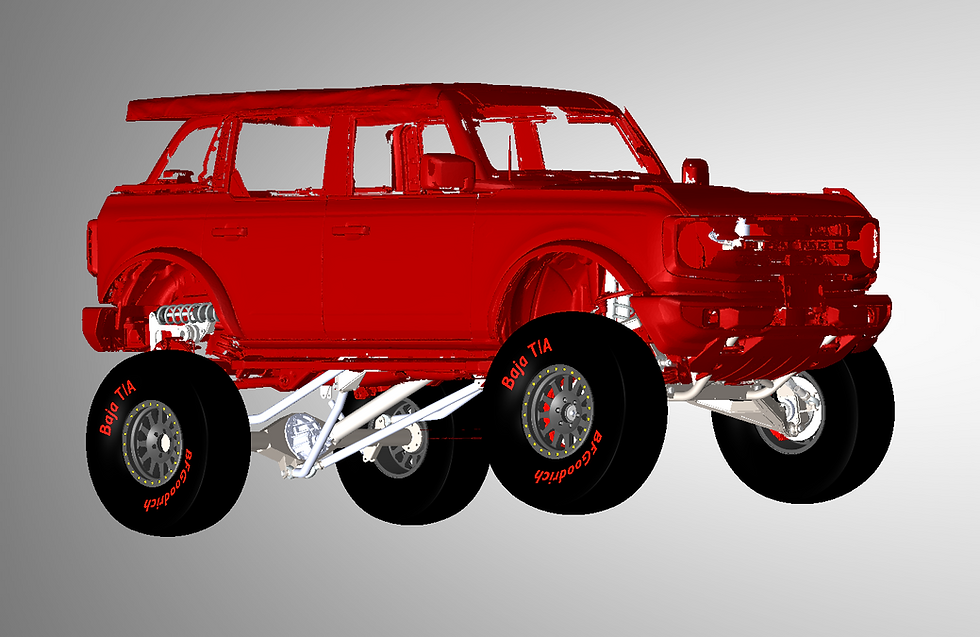

Doesn't take long to notice that the Ford Bronco's stock steering and suspension were never designed to handle large tires, or the typical abuse that accompanies off road, rock climbing adventures. Inspired by Ultra4, this kit was designed and built for the extreme. Comfortably turn 40" tires with ford 9" differentials, push through rocks with the Howe Hydraulic Assist steering rack, and get a little rowdy with oversized Fox Coil Over and Bypass shocks. This suspension kit will compliment a full tube chassis build or a plush daily driver.
Details:
Bolt on Parts
RCV Axle Set
934 ARP Bolts
Unit Bearing
Built 9in 3rd Member
Ford 9in IFS Housing
Fox 10in Coilovers
Fox 2.5 Bypass 10in
Fox Shaft Extension
Springs for Shocks
Springs for Shocks
12in Limit Strap
Double Shear Limit Strap Tabs
Limit Strap Bolts
Steering Coupler 13/16-36 Spline
Hydraulic Line
Steering Fluid
Differential Fluid
Front Brakes
261-14963-bk Master Brakes
Brake parts
Cost: $15,355.43
Fabrication Parts
Steering Spacers on knuckle
Uniball Kits
Heim Kits
Square Heim Bung
Steering Rack
Steering Rod
Steering LH Heim
LH 1.25 Nut
Grade 9 Hardware
Cost $6,455.00
Tryjen Engineering Metal Parts
Steel for Front Axle Housing
Machining for FAH
Studs and Nuts FAH
Steel for Upper Arms
Steel for Lower Arms
Steel for bulkhead
Steel for Knuckles
Laser cut tube for bulk head
ARB Mount
Cost $7,978.10
Tryjen Engineering Power Steering Kit
PS Pump
Belt
Pulley
Idler
Pulley Block
PS Pump Steel
Bolts for brackets
Cost $1,158.30
Optional
Method wheels
Nitto tires
Air Lock Manifold
Twin Air Compressor
Cost $6,101.00
Total Kit Price: $37,047.83
While self assembly is acceptable, I would highly recommend teaming up with K&T Performance for your build. Race Muchmore will have my fixture tables and he consistently produces podium placing chassis. His shop rate is $140 an hour and is worth every penny. In his professional opinion, he thinks it will take around 143 hours to Tig Weld and assemble this build.
Go with confidence knowing that each part of this design has been CAD designed and FEA verified before real world testing. Please reach out with questions.
